automatic drinking system

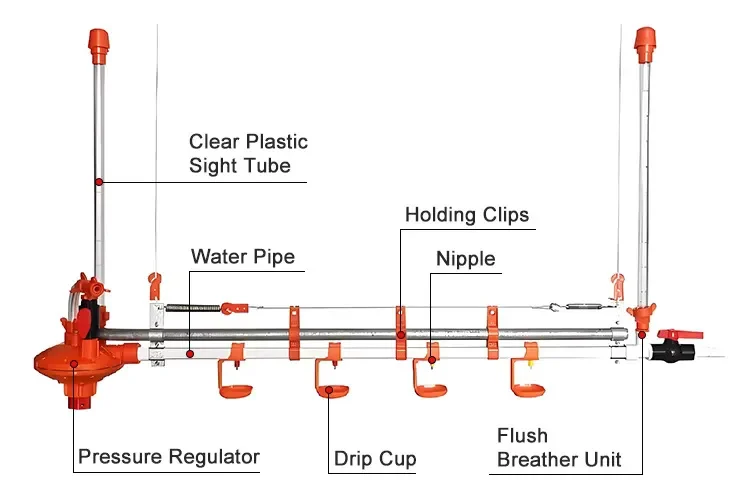

how the automatic drinking system works
The system is connected to a central water source and uses a pressure regulator to maintain uniform water flow. Water passes through the water pipe, and birds drink by activating the nipple, while excess drops are collected in drip cups.
Clear sight tube helps monitor water level
Nipples release water only when birds drink

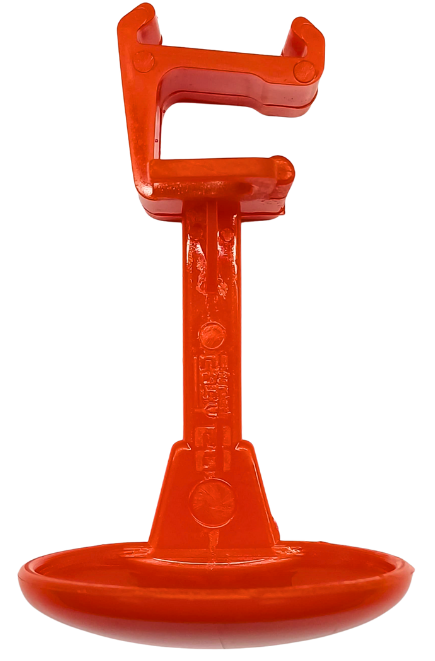

Drip cups reduce water spillage
Flush breather unit allows easy line cleaning
This system ensures clean water supply, reduced wastage, and better poultry house hygiene with minimal manual effort.
technical features of nipple drinker
| Feature | Plastic Nipple Drinker | SS (Stainless Steel) Nipple Drinker |
|---|---|---|
| Nipple Type | 360° nipple | 360° nipple |
| Nipple Material | Plastic housing | Stainless steel (SS) nipple |
| Flow Rate (Vertical Actuation) | 80 ml/min | 80 ml/min |
| Flow Rate (Horizontal Actuation) | 40 ml/min | 40 ml/min |
| Bird Capacity | 10–12 broilers per nipple | 20–25 broilers per nipple |
| Drip Cup | Provided | Provided |
| Water Control | Flow depends on bird actuation | Flow depends on bird actuation |
| Application | Small to medium poultry operations | Medium to large poultry operations |
| Durability | Good | Very high |
our product range
We offer a complete range of automatic poultry drinking solutions, including nipple drinkers, drip cups, pressure regulators, and accessories, designed to ensure clean water supply, reduced wastage, and improved bird health.

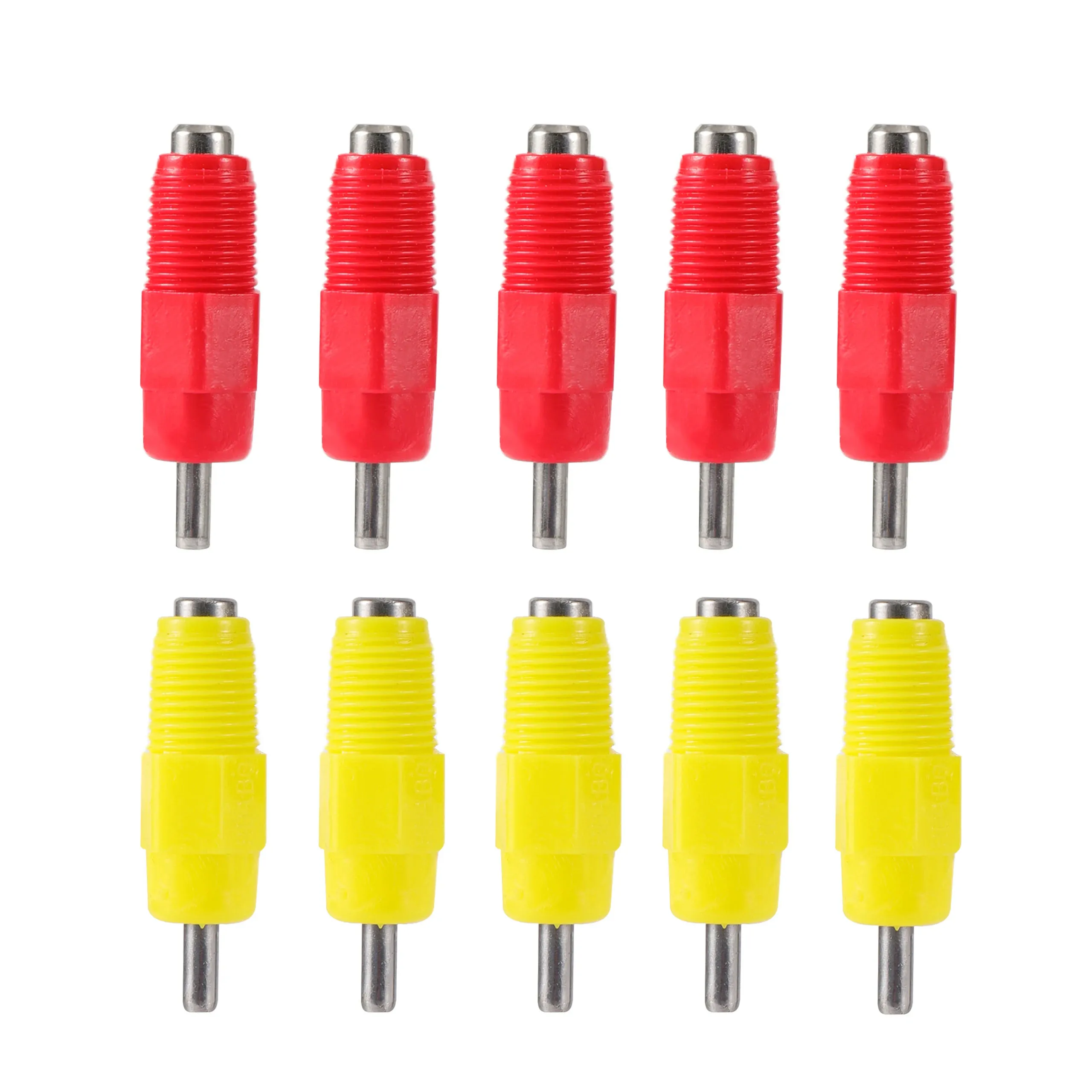

automatic nipple drinker

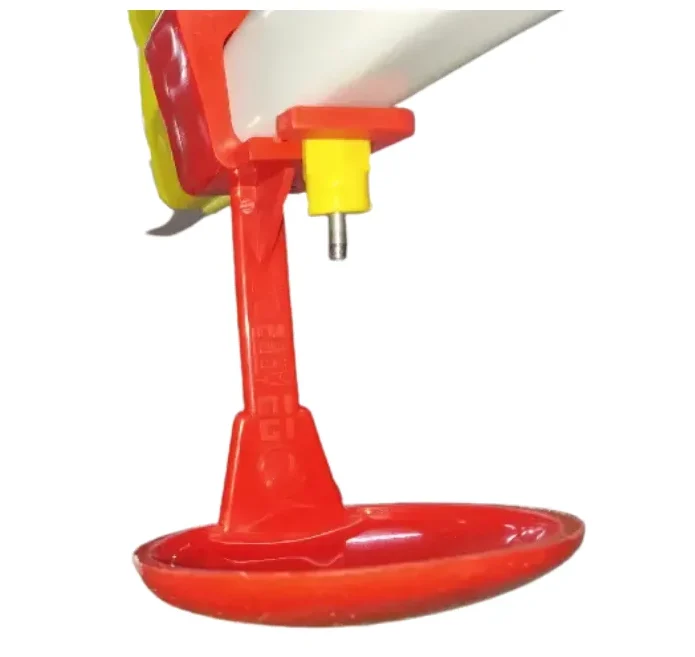

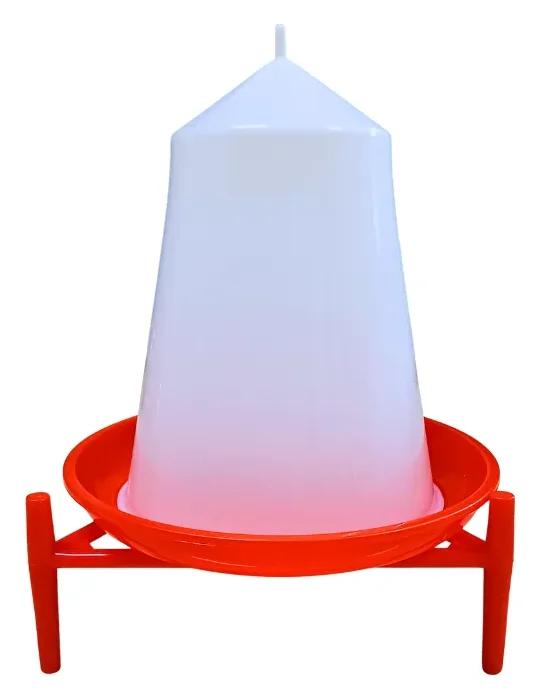

chicks drinker
our other products used in auto-drinking system

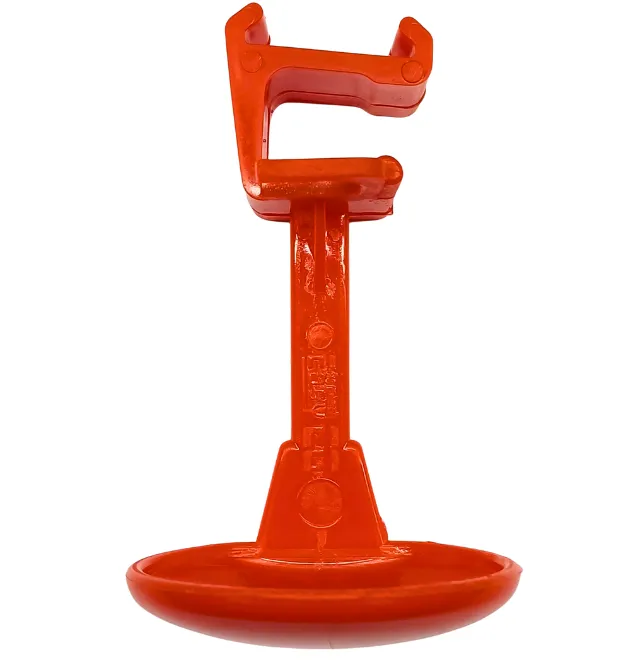

drip cups

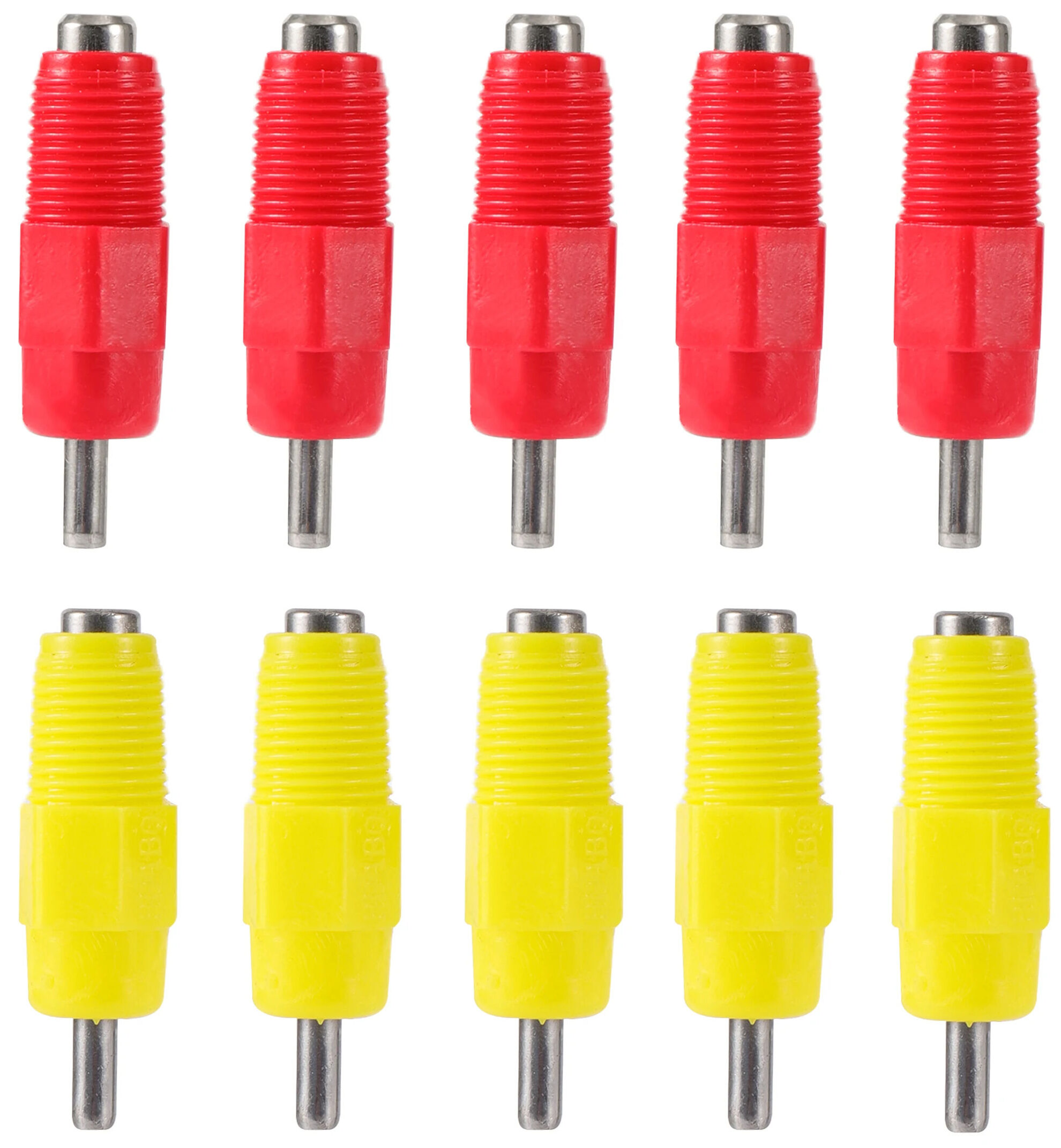

nipple drinkers

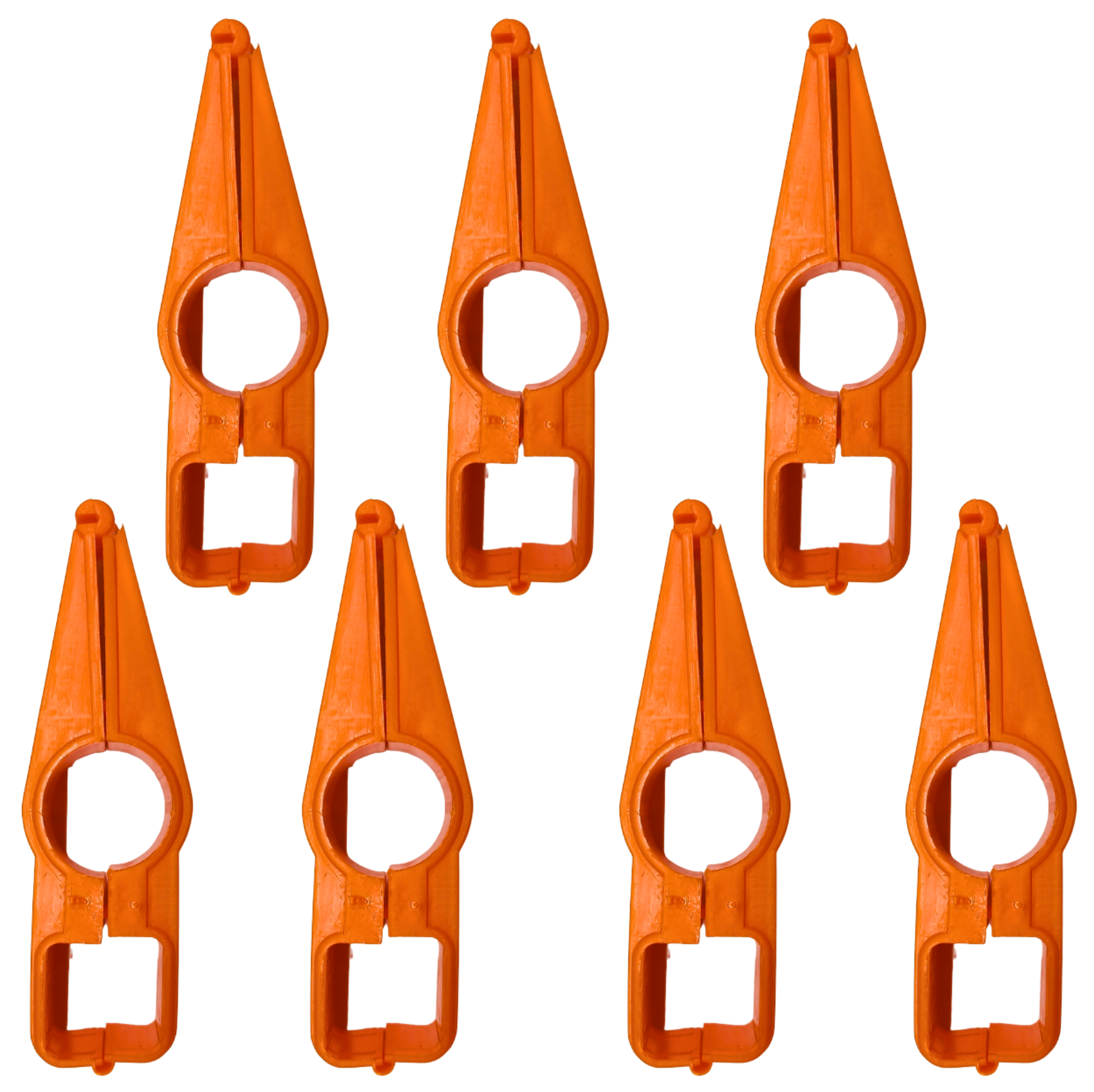

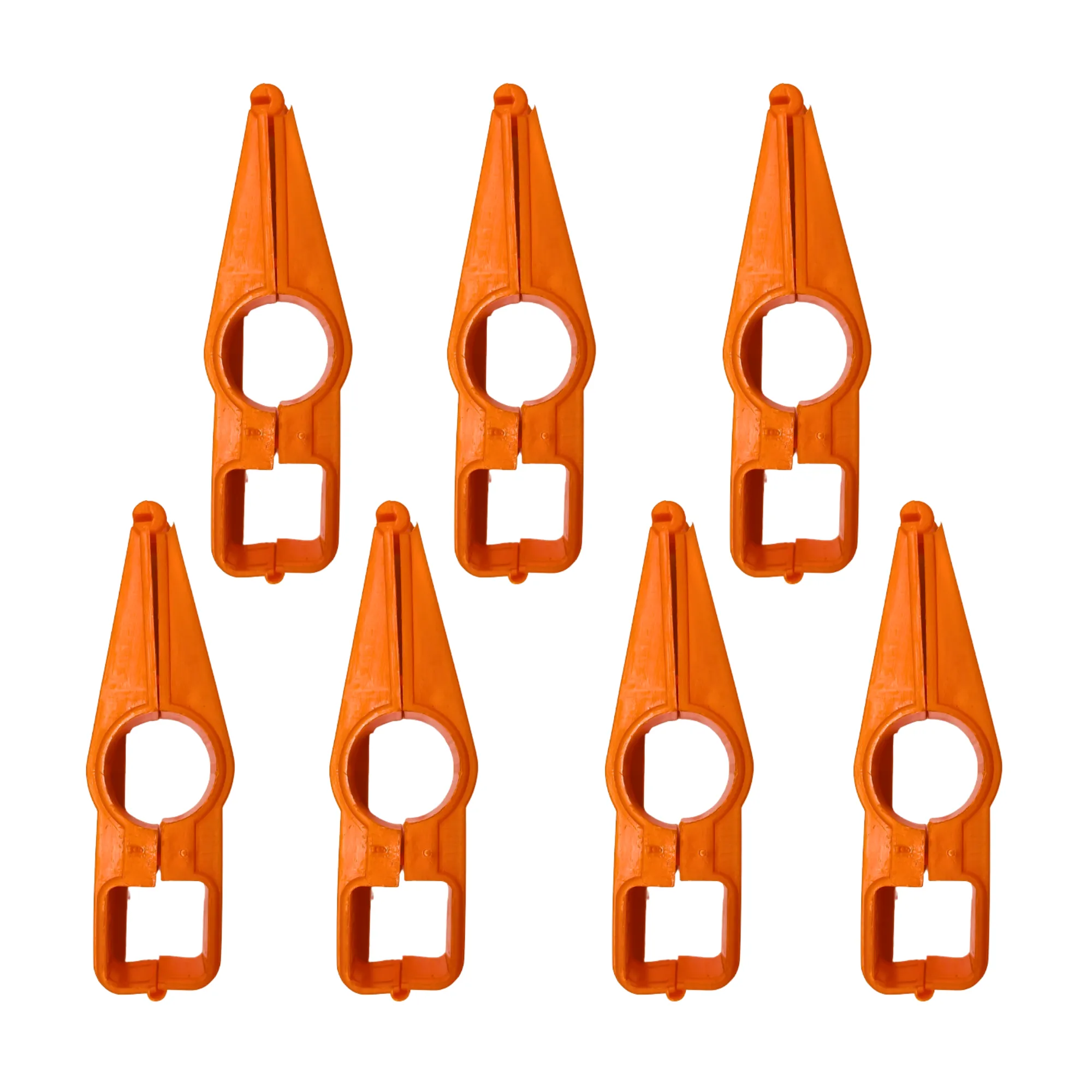

PVC to GI hanging clamp
pressure reguators

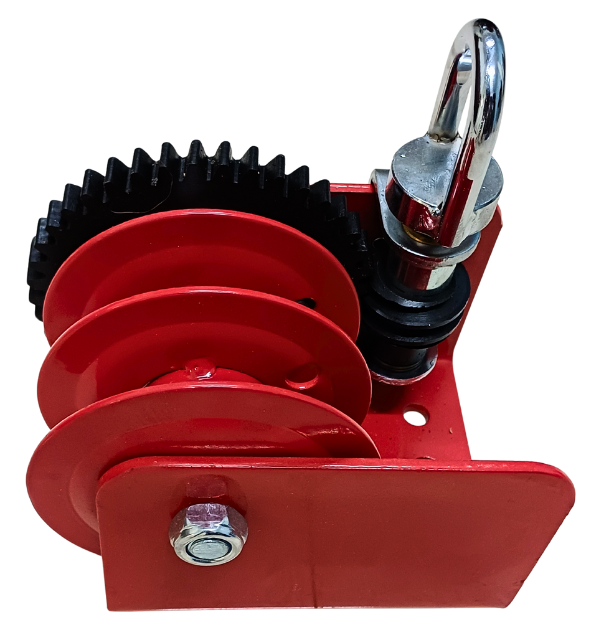

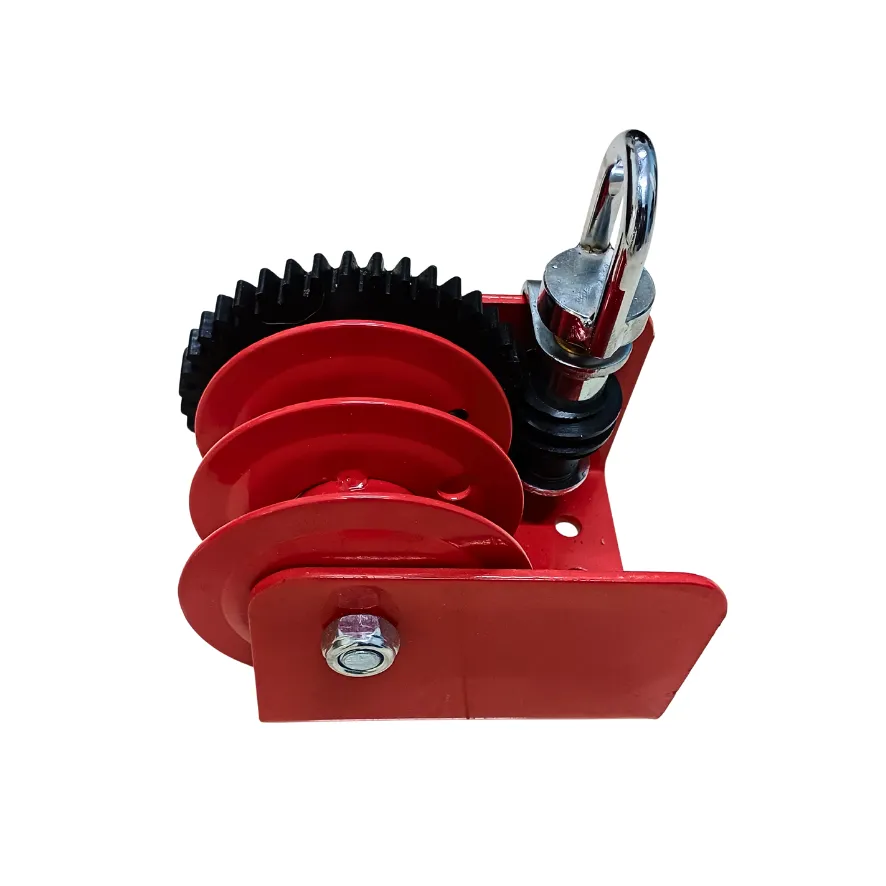

ceiling winch
